Ladder Truss

XSF offers a range of ladder trusses that are right for any application. All of our ladder trusses are fabricated with the same durable wall thickness as our Utility box trusses and are connected together using the same industry standard hardware.  In addition to our standard ladder truss shown on this page, we also fabricate larger format ladder trusses in a variety of sizes such as 16”, 20.5”, 24”, 30” or even 36” tall.

As with all of our other trusses, custom lengths are available up to 20 feet long.

Call us for more information.

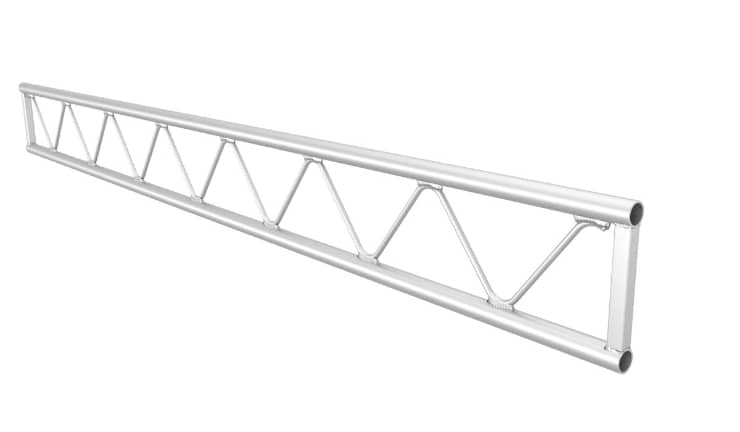

10” XLITE Ladder Truss

  • The chords are 1.5″ OD  x .125” wall thickness.
  • The diagonals are 7/16” diameter solid rod.
  • The truss is connected using standard 5/8″ diameter steel bolts.
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Custom lengths available upon request.

PART NUMBERLENGTH
XL-10S-125BP-LAD-12010′ Ladder Truss
XL-10S-125BP-LAD-968′ Ladder Truss
XL-10S-125BP-LAD-605′ Ladder Truss

10

12” Bolt Plate Ladder Truss

  • The chords are 2.0″ OD  x .125” wall thickness.
  • The diagonals are 1” OD x .125” wall thickness.
  • The truss is connected using standard 5/8″ diameter steel bolts
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Custom lengths available upon request.

PART NUMBERLENGTH
X-12U-125BP-LAD-12010′ Ladder Truss
X-12U-125BP-LAD-968′ Ladder Truss
X-12U-125BP-LAD-605′ Ladder Truss

Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
554013501015675
103015411577

12

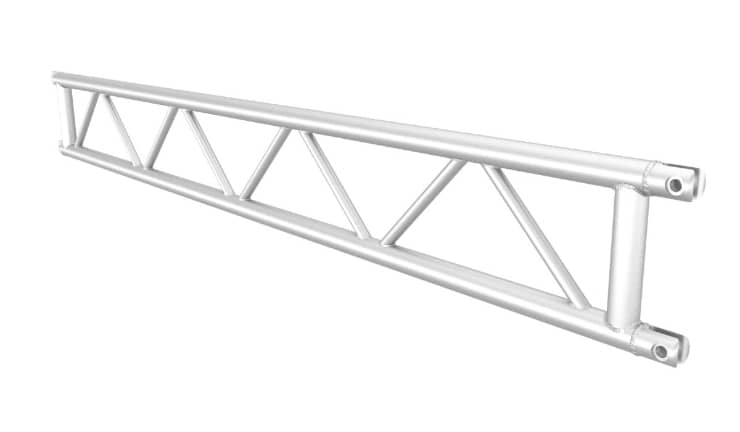

12″ Aluminum Utility Ladder Truss with Aluminum Fork End Connections

  • The chords are 2.0″ OD  x .125” wall thickness.
  • The diagonals are 1” OD x .125” wall thickness.
  • The truss is connected using standard ¾” clevis pins and r-clips.
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Custom lengths available upon request



PART NUMBERLENGTH
X-12U-125AFE-LAD-12010′ Ladder Truss
X-12U-125AFE-LAD-968′ Ladder Truss
X-12U-125AFE-LAD-605′ Ladder Truss

Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
554013501015675
103015411577

Ladder Truss12

12″ Aluminum Utility Ladder Truss with Aluminum Fork End Connections

12″ Aluminum Utility Ladder Truss with Steel Fork End Connections

  • The chords are 2.0″ OD  x .188” wall thickness.
  • The diagonals are 1” OD x .125” wall thickness.
  • The truss is connected using standard ¾” clevis pins and r-clips.
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Custom lengths available upon request.



PART NUMBERLENGTH
X-12U-188FE-LAD-12010′ Ladder Truss
X-12U-188FE-LAD-968′ Ladder Truss
X-12U-188FE-LAD-605′ Ladder Truss

Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
51435359026951795
1098490365245
15141098154

12″ Aluminum Utility Ladder Truss with Steel Fork End Connections

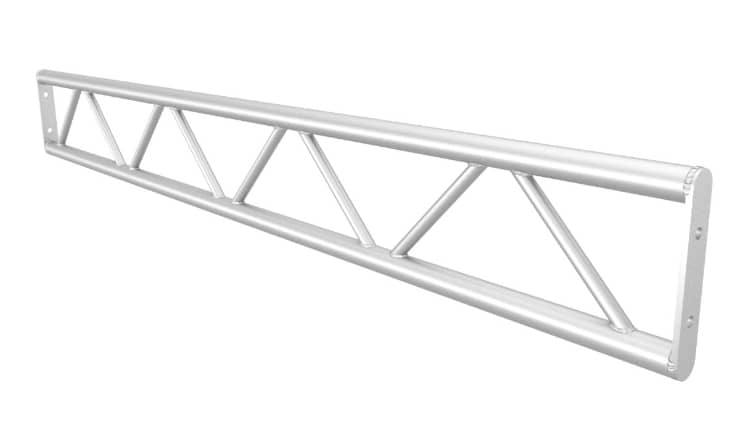

16” Bolt Plate Ladder Truss

  • The chords are 2.0″ OD x .125” wall thickness.
  • The diagonals are 1” OD x .125” wall thickness.
  • The truss is connected using standard ¾” clevis pins and r-clips.
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Custom lengths available upon request.



PART NUMBERLENGTH
X-16U-125BP-LAD-12010′ Ladder Truss
X-16U-125BP-LAD-968′ Ladder Truss
X-16U-125BP-LAD-605′ Ladder Truss
16" Utility Bolt Plate Ladder Truss

16” Bolt Plate Ladder Truss

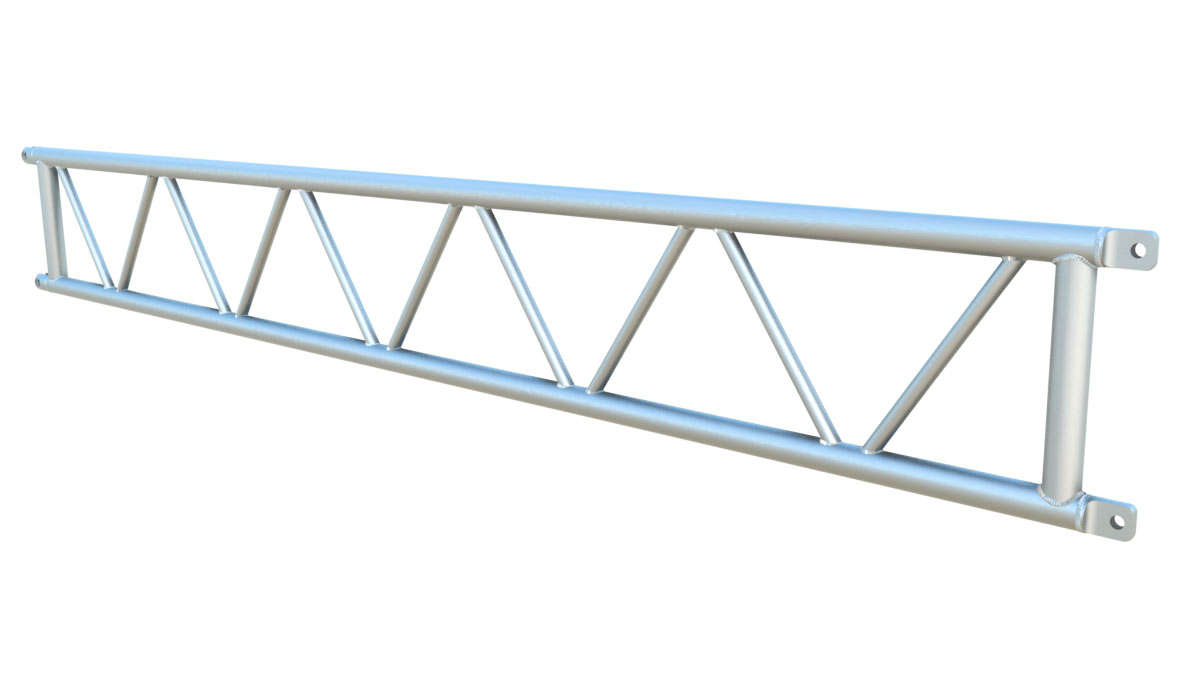

16″ Aluminum Utility Ladder Truss with Aluminum Fork End Connections

  • The chords are 2.0″ OD x .125” wall thickness.
  • The diagonals are 1” OD x .125” wall thickness.
  • The truss is connected using standard ¾” clevis pins and r-clips.
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Custom lengths available upon request.



PART NUMBERLENGTH
X-16U-125AFE-LAD-12010′ Ladder Truss
X-16U-125AFE-LAD-968′ Ladder Truss
X-16U-125AFE-LAD-605′ Ladder Truss
16" Aluminum Forkend Ladder Truss

16″ Aluminum Utility Ladder Truss with Aluminum Fork End Connections

16″ Aluminum Utility Ladder Truss with Steel Fork End Connections

  • The chords are 2.0″ OD  x .188” wall thickness.
  • The diagonals are 1” OD x .125” wall thickness.
  • The truss is connected using standard ¾” clevis pins and r-clips.
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Custom lengths available upon request.



PART NUMBERLENGTH
X-16U-188FE-LAD-12010′ Ladder Truss
X-16U-188FE-LAD-968′ Ladder Truss
X-16U-188FE-LAD-605′ Ladder Truss
16" Steel Forkend Ladder Truss

16″ Aluminum Utility Ladder Truss with Steel Fork End Connections

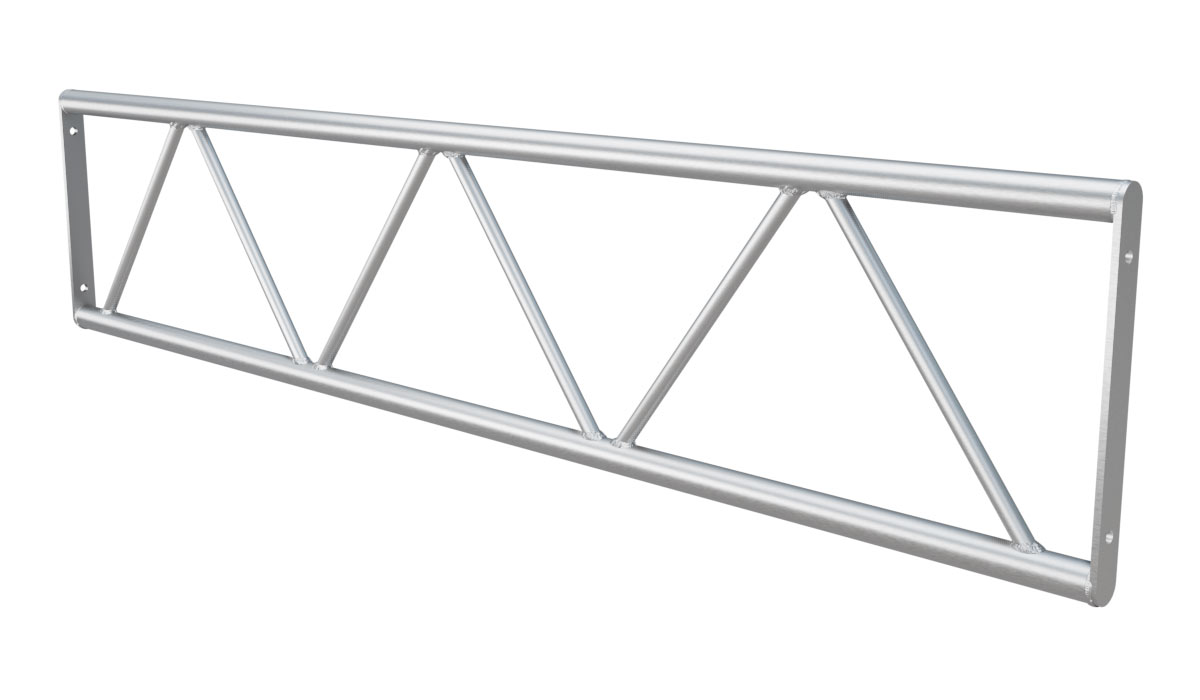

20.5” Bolt Plate Ladder Truss

  • The chords are 2.0″ OD x .125” wall thickness.
  • The diagonals are 1” OD x .125” wall thickness.
  • The truss is connected using standard ¾” clevis pins and r-clips.
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Custom lengths available upon request.



PART NUMBERLENGTH
X-20.5U-125BP-LAD-12010′ Ladder Truss
X-20.5U-125BP-LAD-968′ Ladder Truss
X-20.5U-125BP-LAD-605′ Ladder Truss
20.5" Bolt Plate Ladder Truss

20.5” Bolt Plate Ladder Truss

20.5″ Aluminum Utility Ladder Truss with Aluminum Fork End Connections

  • The chords are 2.0″ OD x .125” wall thickness.
  • The diagonals are 1” OD x .125” wall thickness.
  • The truss is connected using standard ¾” clevis pins and r-clips.
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Custom lengths available upon request.



PART NUMBERLENGTH
X-12U-125AFE-LAD-12010′ Ladder Truss
X-12U-125AFE-LAD-968′ Ladder Truss
X-12U-125AFE-LAD-605′ Ladder Truss
20.5" Aluminum Forkend Ladder Truss

20.5″ Aluminum Utility Ladder Truss with Aluminum Fork End Connections

20.5″ Aluminum Utility Ladder Truss with Steel Fork End Connections

  • The chords are 2.0″ OD  x .188” wall thickness.
  • The diagonals are 1” OD x .125” wall thickness.
  • The truss is connected using standard ¾” clevis pins and r-clips.
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Custom lengths available upon request.



PART NUMBERLENGTH
X-20.5U-188FE-LAD-12010′ Ladder Truss
X-20.5U-188FE-LAD-968′ Ladder Truss
X-20.5U-188FE-LAD-605′ Ladder Truss
20.5" Steel Forkend Ladder Truss

20.5″ Aluminum Utility Ladder Truss with Steel Fork End Connections

2-Way Ladder Truss Corner Block

2-Way Ladder Truss Corner Block
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.



PART NUMBERLENGTH
X-12U-125BP-LAD-2WAY2-Way Ladder Truss Corner Block

3-Way Ladder Truss Corner Block

3-Way Ladder Truss Corner Block
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.



PART NUMBERLENGTH
X-12U-125BP-LAD-3WAY3-Way Ladder Truss Corner Block

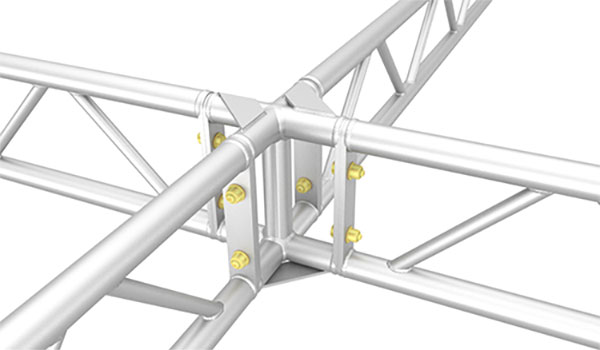

4-Way Ladder Truss Corner Block

  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.



PART NUMBERLENGTH
X-12U-125BP-LAD-4WAY4-Way Ladder Truss Corner Block
