Truss Towers
XSF manufactures industry-standard tower trusses in a wide variety of sizes, strengths, and lengths. Standard lengths are 5’, 8’, and 10’, however, each tower truss can be manufactured in any length to meet custom specifications without the custom cost.
Choose from our standard bolt plate connections, protective bolt plate connections, aluminum fork ends (spigots) or high strength plated steel fork ends (spigots) connections depending on the strength and load rating required for your project.
Choose from our standard 2” x 1/8” aluminum truss chords or upgrade your towers to 2” x 3/16” chords. Our high strength plated steel fork end towers come standard with 2” x 3/16” chords.
Contact one of our friendly XSF sales staff at 903-438-1100 for more information.

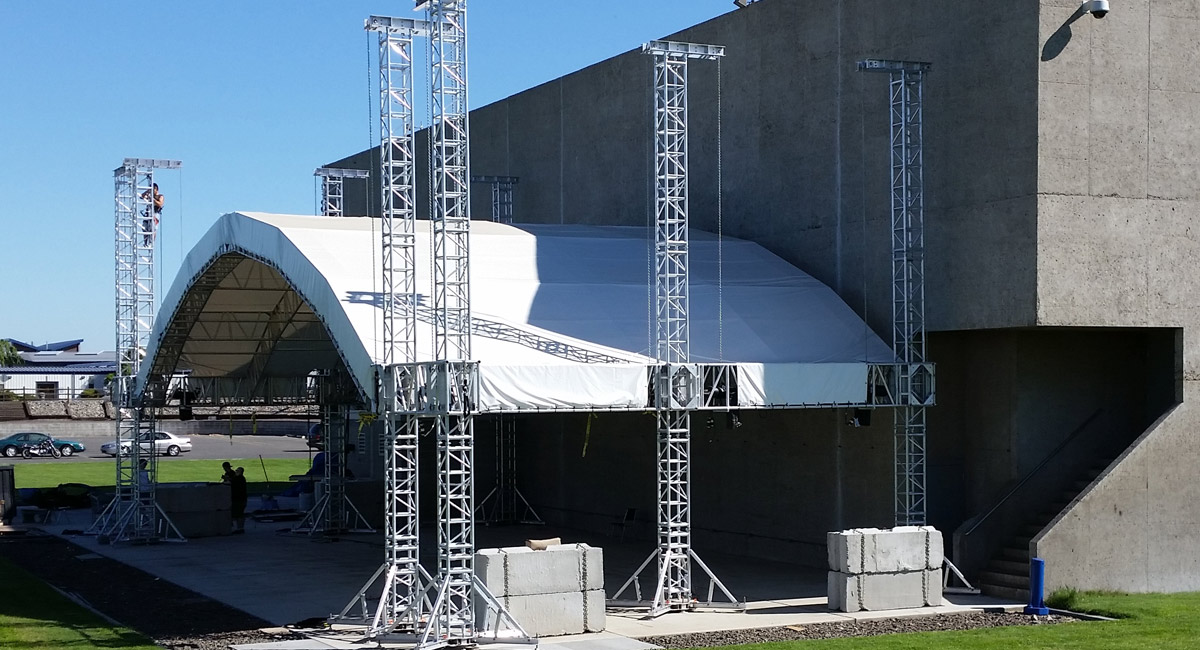

See XSF Truss Tower Image Galleries & Tower Product Lines Below!
For Truss Tower Stabilizer Base Packages scroll to the bottom of this page
TRUSS SIZES for TOWERS
12″ x 12″ Protective Bolt Plate Tower Truss (patent pending)
12” Protective Bolt Plate Tower comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with 5/8″ steel bolts. Optional upgrade to 2” OD x 3/16” thick chords is available upon request.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
12″ x 12″ Classic Bolt Plate Tower Truss
12” Classic Bolt Plate Tower comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with 5/8″ steel bolts. Optional upgrade to 2” OD x 3/16” thick chords is available upon request.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
12″ x 12″ Aluminum Fork End Tower Truss
12” Aluminum Fork End Tower comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with ¾” steel clevis pins and R-clips.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
See More XSF Truss Tower Images Below or Visit Our Gallery Page
12″ x 12″ Steel Fork End Tower Truss
The aluminum chords are 2″ OD x 3/16″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with ¾” steel clevis pins and R-clips.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
16″ x 16″ Protective Bolt Plate Tower Truss (patent pending)
16” Protective Bolt Plate Tower comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with 5/8″ steel bolts. Optional upgrade to 2” OD x 3/16” thick chords is available upon request.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
16″ x 16″ Classic Bolt Plate Tower Truss
16” Classic Bolt Plate Tower comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with 5/8″ steel bolts. Optional upgrade to 2” OD x 3/16” thick chords is available upon request.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
16″ x 16″ Aluminum Fork End Tower Truss
16” Aluminum Fork End Tower comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with ¾” steel clevis pins and R-clips.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
16″ x 16″ Steel Fork End Tower Truss
The aluminum chords are 2″ OD x 3/16″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with ¾” steel clevis pins and R-clips.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
20.5″ x 20.5″ Protective Bolt Plate Tower Truss (patent pending)
20.5” Protective Bolt Plate Tower comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with 5/8″ steel bolts. Optional upgrade to 2” OD x 3/16” thick chords is available upon request.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
20.5″ x 20.5″ Classic Bolt Plate Tower Truss
20.5” Classic Bolt Plate Tower comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with 5/8″ steel bolts. Optional upgrade to 2” OD x 3/16” thick chords is available upon request.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
20.5″ x 20.5″ Aluminum Fork End Tower Truss
20.5” Aluminum Fork End Tower comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with ¾” steel clevis pins and R-clips.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
20.5″ x 20.5″ Steel Fork End Tower Truss
The aluminum chords are 2″ OD x 3/16″ thick with 1″ OD x 1/8″ thick aluminum diagonals in 3 sides and 2” OD x 1/8” thick horizontals evenly spaced in the fourth face. The trusses are joined together with ¾” steel clevis pins and R-clips.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
Truss Tower Stabilizer Base Packages
Light Truss Tower Stabilizer Base Package
- 12” to 20.5” Truss Sizes
- 24″ or 36″ Steel UBP – Base Plate
- 4 Universal Clamp-on Outrigger Legs
Heavy Duty Truss Tower Stabilizer Base Package
- 12” to 20.5” Truss
- Clover leaf universal base plate with leveling feet
- 4 Outrigger legs with leveling feet
- 4 Clamp-on Stabilizers
- 1 Tower Hinge Section
